SKU TW-MP

Thinkware Multiplexer

$99.99

$99.99 - $99.99

$99.99

$99.99 - $99.99

$99.99 CAD

Best Price Guaranteed

What's covered?

No Coverage

+1 Year -

$9

BEST SELLER

+2 Year -

$15

Quantity

More payment options

Note: The Thinkware Multiplexer is not a camera

The Thinkware Multiplexer can only be used as an add-on accessory to a compatible Thinkware dash cam (Q200, F200 Pro, F790, X700 and X800). The Multiplexer is not a camera and cannot be used to record driving footage by itself.

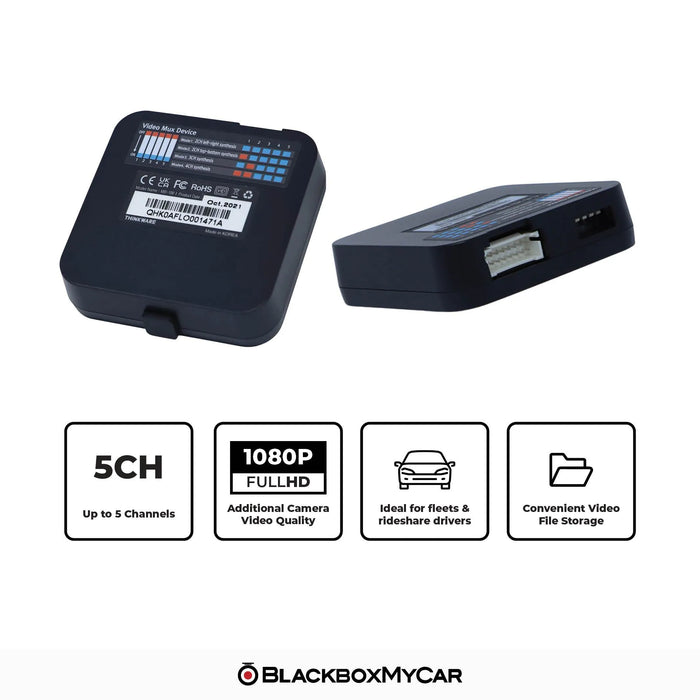

Thinkware Multiplexer Box

Multi-Channel Expansion Pack for Thinkware Q200 2-Channel

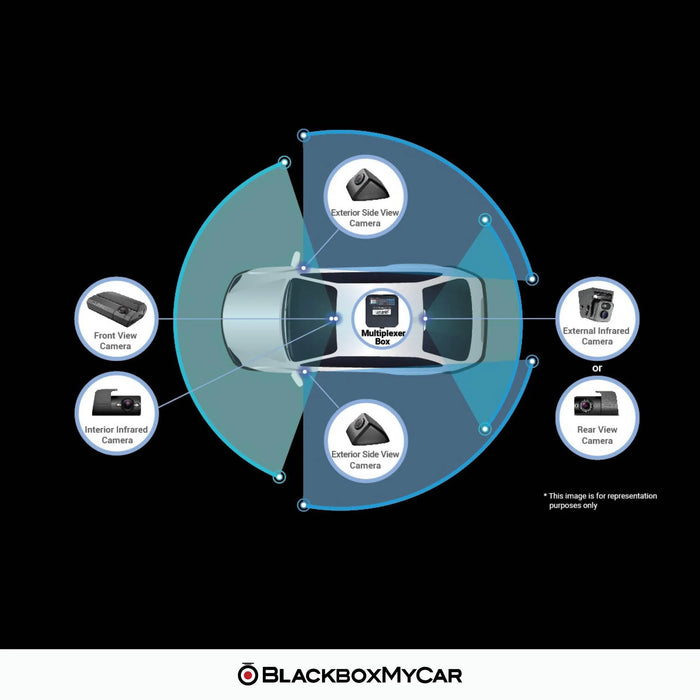

Transform your Thinkware dash cam into a multi-channel surveillance system. Cover every angle of your vehicle for all-around Full HD surveillance. Add up to 4 side, interior, and rearview cameras to the main front-facing dash cam to simultaneously get footage all around.

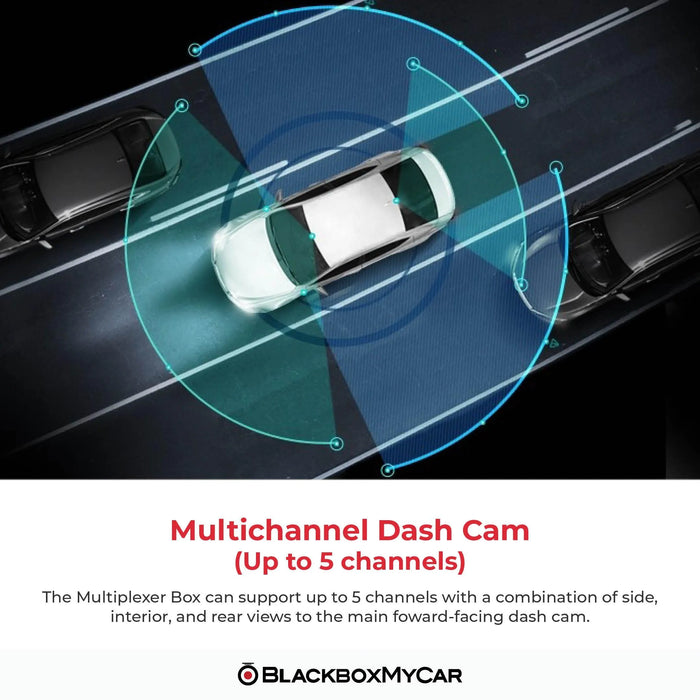

Up to 5 channels for 360°

Thanks to the modular design of the multiplexer, you can add a combination of side, interior, and rear views to the main forward-facing dash cam. Get 360° protection without the hassle of managing multiple dash cams or dealing with huge video files.

Build-your-own package

Heavy Duty Truck Bundle

Advanced 360° recording system for heavy-duty vehicles & trucks, installed externally

1x Thinkware Q200 2-CH
3x Exterior Infrared Cameras
1x Thinkware Multiplexer

Cargo Bundles

Enhanced recording for secure cargo van monitoring, installed externally

Rideshare Bundles

Tailored recording solution for rideshare drivers, including Uber, Lyft, taxis & more

Full HD Video Quality

All additional cameras record in 1080p Full HD and then reduced by have (960 x 540p) to be combined into one video. This ensures that details captured in the original video is preserved.

Built for fleets & rideshare

Get the whole picture and protect your investment against potential fraudulent claims. Adding additional cameras with the Multiplexer will ensure that all details are captured from different angles for a complete and accurate description of the vehicle incident.

Convenient Video File Storage

The Multiplexer merges recordings from the additional cameras into one feed, allowing the Q200 to operate as a full DVR system that would traditionally cost a fortune.

All additional cameras record in 1080p Full HD and then reduced by have (960 x 540p) to be combined into one video. This ensures that details captured in the original video is preserved.

Recordings from the main/front-facing dash cam unit are saved separately.

Take Your Pick

Choose between any of these cameras to make your Q200 footage complete:

Exterior Sideview

Mounted on the exterior of the vehicle to capture events in blind spots; perfect for commercial vehicles and small trucks.

Exterior Rearview

Mounted on the exterior of the vehicle to record what's happening around the vehicle; perfeect for vehicles with no rear window.

Interior Infrared

Mounted inside the vehicle to capture events inside the vehicle; perfect for rideshare and taxi drivers.

Interior Rear View

Mounted on the rear windshield to capture the traffic behind.

Videos & Reviews

Stay tuned for our Long Term Review. Subscribe to our YouTube channel for the latest news, reviews, and guides.

Reviews

What's Included

Thinkware Multiplexer
Multiplexer power cable
Multiplexer V-Out cable
Installation guide
Choice of add-on camera

Specifications

Recording Channel

up to 4 analog Full HD cameras (total of 5 cameras)

Composite Video

Full HD 1080p @ 30 FPS

Dimensions

(WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)

Weight

40.0g (1.41 oz)

Storage temperature

-20°~ 70°C (-4°~ 158°F)

Operating Temperature

-10°~ 60°C (14°~ 140°F)

Key

piano code switch

Power Source

2 (BAT, GND) | DC 12V - 24V

Power Cable Length

3m

AV-IN

4 cables | 2.5 pi Stereo-jack type | AFHD

AV-OUT

for front camera connection | 2.5 pi Stereo-jack type

Country of Origin

South Korea

Warranty

1-Year Manufacturer Warranty

See helpful Thinkware Series questions and answers on our FAQ Knowledge Base.

Perfect for added coverage

I installed this multiplexer to get additional camera angles for my security setup. It integrates seamlessly with my Thinkware dash cam and provides peace of mind with more comprehensive footage. Setup was straightforward. Highly recommend!

Seamless connection

This multiplexer does what it says. I connected it to multiple cameras, and it works like a charm. Very little delay between switching camera views. It’s been a perfect addition to my high-traffic monitoring.

Makes security thorough

This unit allows me to monitor multiple angles around my truck. The video clarity is fantastic and integrates well with my existing system. Just note, you might need professional installation if you aren't tech-savvy.
