Thinkware Radar Module - BlackboxMyCar Canada
SKU TWU1000-RADAR

Thinkware Radar Module

Save 10% Save 10%
$99.99
$99.99 - $99.99
$99.99
$89.99 CAD
$89.99 - $89.99
$89.99 CAD
Black Friday Sale

Overview

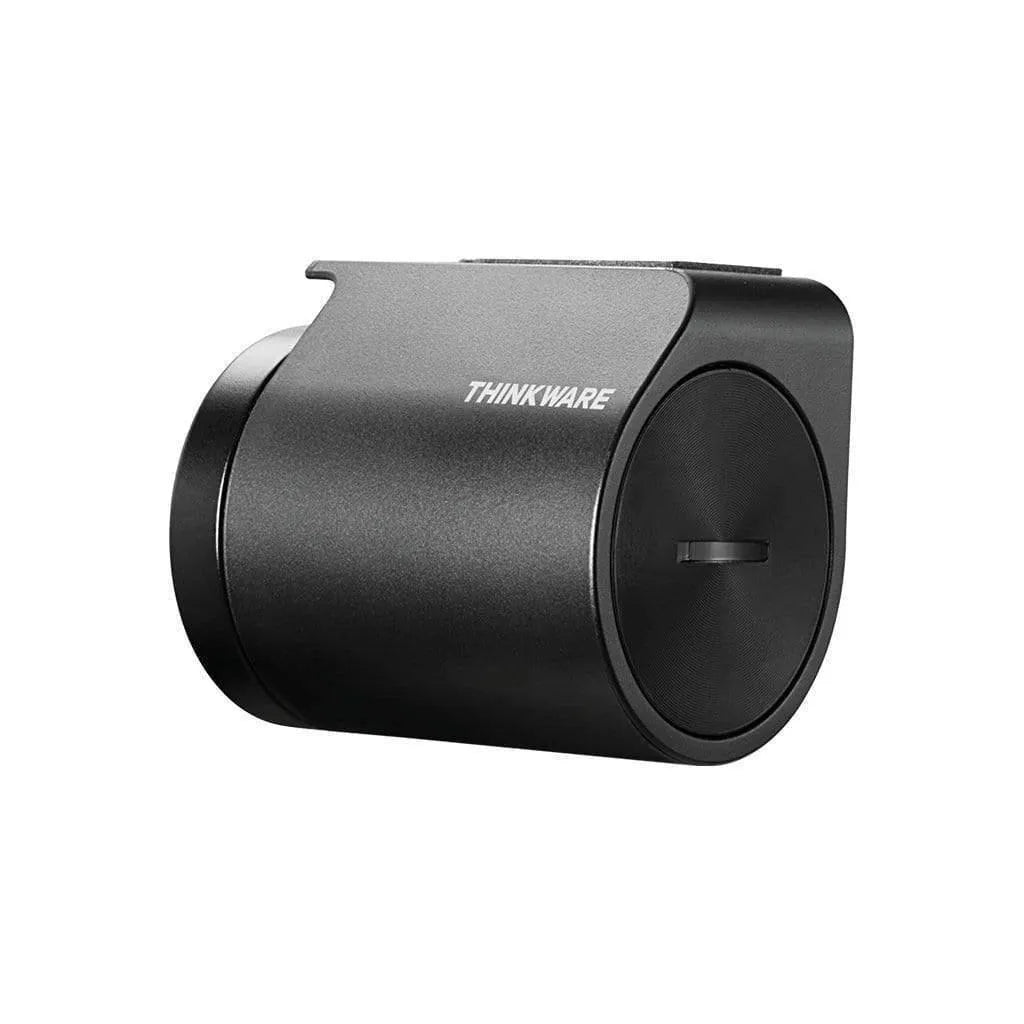

Thinkware Radar Module

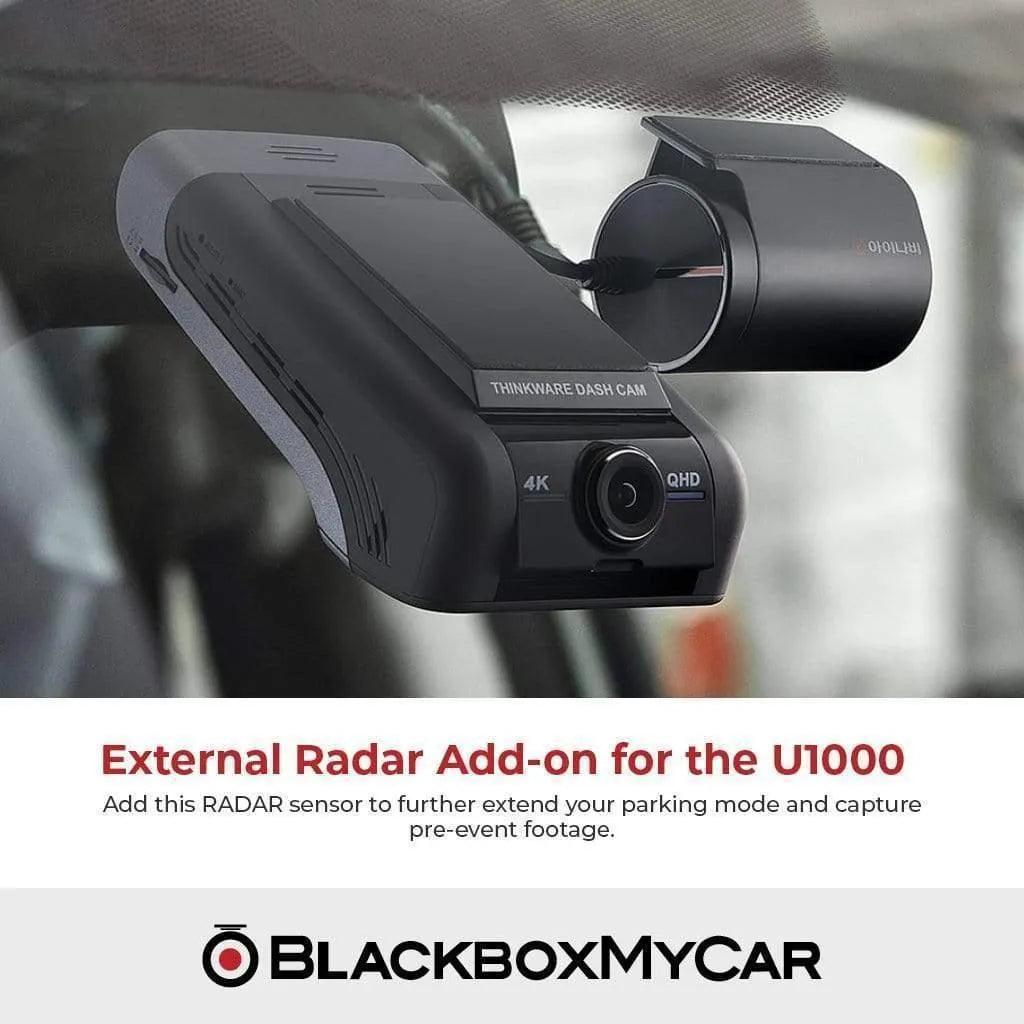

The Thinkware Radar Module enables extended parking mode for the Thinkware U1000, X1000 and Q1000.

The Thinkware RADAR is an optional radar motion detection module designed to enhance the dash cam’s Energy Saving Parking Mode 2.0 with ultra-high frequency radar motion detection and buffered recording.

*Energy Saving Parking Mode "Enabled" is required for RADAR motion detection.

When paired with a Cellink NEO Battery Pack, parking mode run-time can be extended to up to 170 hours (7 days).



Learn more about the Thinkware Radar Module in Parking Mode.

Features

Ultra High Frequency Radar

The Thinkware Radar Module is designed to be used when the dash cam is on Energy Saving Parking Mode 2.0.

*Energy Saving Parking Mode 2.0 is supported on the Thinkware U1000, X1000 and Q1000 dash cams.

When the Radar Module detects a moving object within the range, the dash cam will switch into Recording Standby Mode and impact detection is set for 30 seconds.

Energy Saving Mode 2.0

If an impact has been made within 30 seconds, the dash cam will save 20 seconds video of before and after the impact.

Without the Radar Module, the Energy Saving Mode will trigger recording only after an impact has been made, leaving you without any pre-event evidence.

If no impact is detected within the 30-seconds, the dash cam will automatically switch back to Energy Saving mode and no recording is stored.

IMPORTANT

Cloud features will be temporarily disabled when the Thinkware U1000 and Q1000 dash cams is in Energy Saving Mode 2.0.

Specifications

Detection Distance Range

Approx. 7m (23ft)

Detection Horizontal Angle Range

Approx. 80°

Detection Vertical Angle Range

Approx. 35°

Operating Temperature

-30°C ~ 75°C

Operating Temperature

Approx. 35 mAh

Battery Efficiency: Motion Detect

270mAh consumption (33hrs/9Ah)

Battery Efficiency: Time Lapse

270mAh consumption (33hrs/9Ah)

Battery Efficiency: Energy Saving Mode

128.7mAh (70hrs/9Ah)

Battery Efficiency: Energy Saving Mode + Radar

Energy Saving Mode (128.7mAh) + Radar (34mAh): 55hrs/9Ah

Warranty

1-Year Manufacturer Warranty

*numbers are based on Energy Saving Mode 2.0 + optional RADAR + iVOLT BAB-50

Disclaimer

  • Radar motion detection requires optional module, and only enabled in energy saving mode.
  • Due to nature of the radar’s Ultra-high Frequency and the surroundings of vehicles, the distance and degree of detection may vary.
  • The radar is designed to detect sedan or larger sized vehicles. It may not detect smaller objects (such as people or bicycles).
  • To ensure proper functionality, please install Radar Sensor away from anything metallic or other sensors.

Installing the Thinkware Radar Module

Installing the Thinkware Radar Module

  1. Remove the film on the back of the RADAR module.
  2. Attach the RADAR module’s adhesive surface to the upper part of the front windshield. The logo should be facing outside the windshield and the red line should be horizontal.
  3. Press the adhesive part firmly to secure it.
  4. Connect the RADAR module to the dash cam’s RADAR connector.
  5. Turn on the ACC or start the engine to check that the RADAR is powered on.

* Before installation, make sure the RADAR module’s cable length is sufficient and check the cable routing path.

Setting up the Thinkware Radar Module

  1. From the mobile viewer, tap Dash Cam Settings > Record Settings.
  2. From RADAR, select Enable or Disable. The new setting is applied automatically.

Important

  • Metal materials within the detection range may interfere with the RADAR module’s proper functionality and may cause module malfunction.
  • Do not install the RADAR module on metal material-tinted windshields
  • Install the RADAR module as far away as possible from the metal-material part of the mirror, Lane sensor or built-in ADAS camera.
